IMOS - Data Dictionary

Home > Data Center > Data Dictionary

You must have the Data Dictionary Module Right selected, under Quick Links in the Data Center.

In the Data Dictionary, you can view all tables and elements (fields) used throughout the Veson IMOS Platform, including custom elements.

  • On the main menu  Main Menu button.jpg , under Data Center, click Data Dictionary.

  • In the Data Center, click Data Dictionary button.jpg .

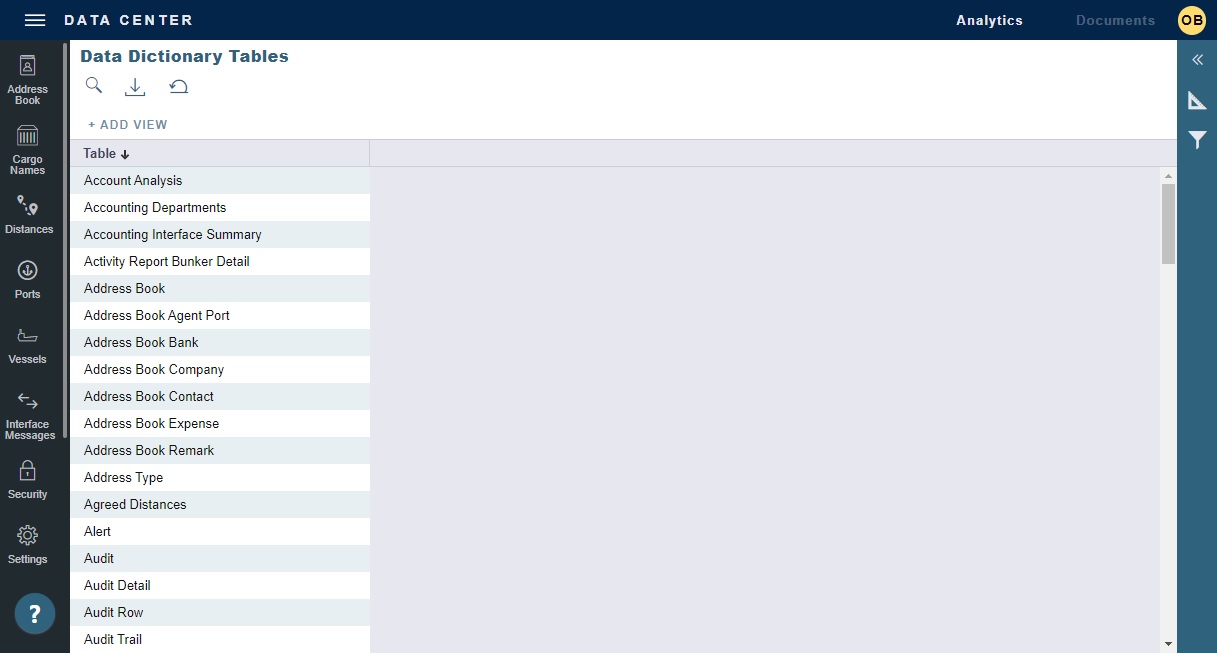

A list of all tables appears.

DC-Data Dictionary-Tables.jpg
As with any other list, you can search, select, adjust, pin, filter, group, and sort columns, reset to the default view, save user views, and export.

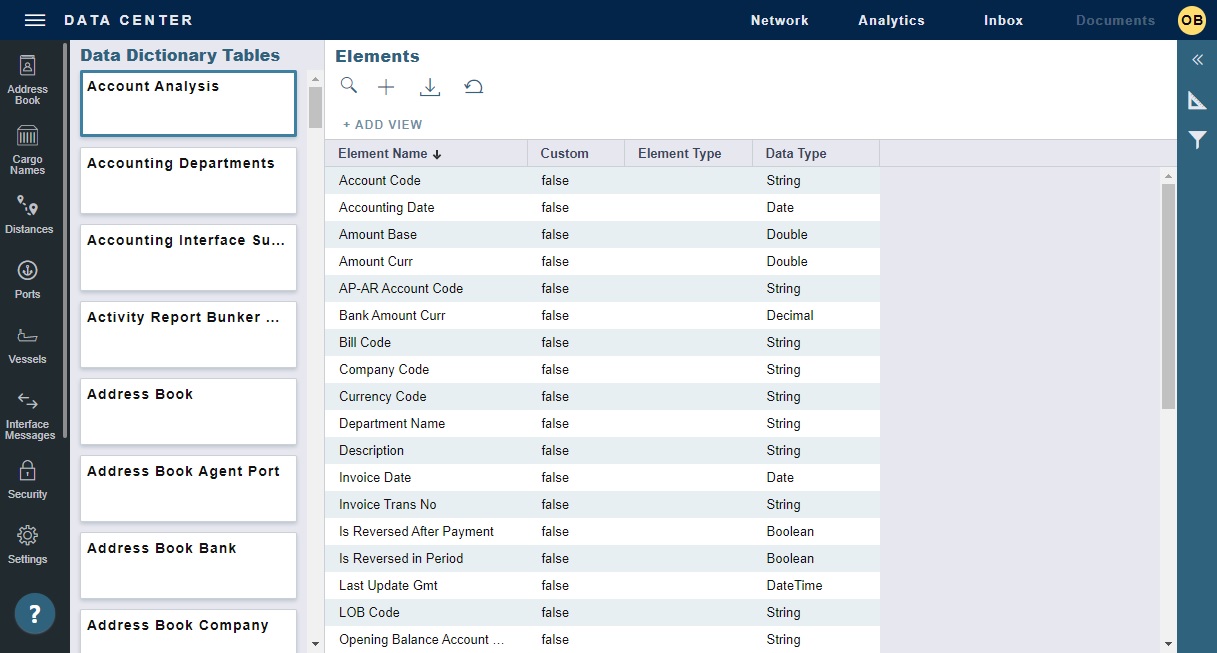

To select a table, click its row. A list of its Elements appears on the right.

DC-Data Dictionary-Elements.jpg
As with any other details view, you can navigate to a different record by clicking its card or return to the list by clicking its Name.

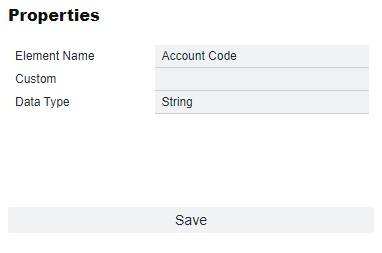

To view the properties of an element, click its row. A Properties panel appears.

DC-Data Dictionary-Properties pane.jpg

Adding and Editing Custom Elements

You must have the Edit Data Dictionary Elements Module Right selected, under Actions in the Data Center.

You can create custom elements to be used in Task & Alert Rules and the Report Designer.

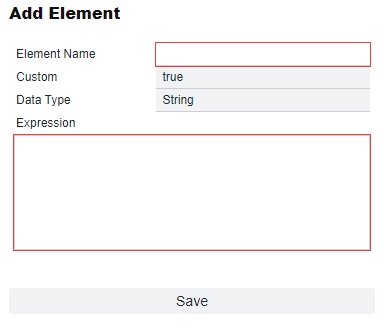

  • To add a new element, select the table to which you want to add and then click Add Button.png .

  • To edit an existing custom element, select its table and then click its row.

DC-Data Dictionary-Add Element pane.jpg

  1. Enter an Element Name.

  2. Data Type automatically populates based on the Expression you enter:

    • Boolean

    • Decimal

    • Date

    • DateTime

    • Double

    • Enum

    • Integer

    • String

    If the expression is valid, the Save button appears blue.

  3. Click Save.

Note: Data Dictionary method does not support fields that originate from Cargo table.
