IMOS - Vessel Schedule

View IMOS Documentation in the Help Center.

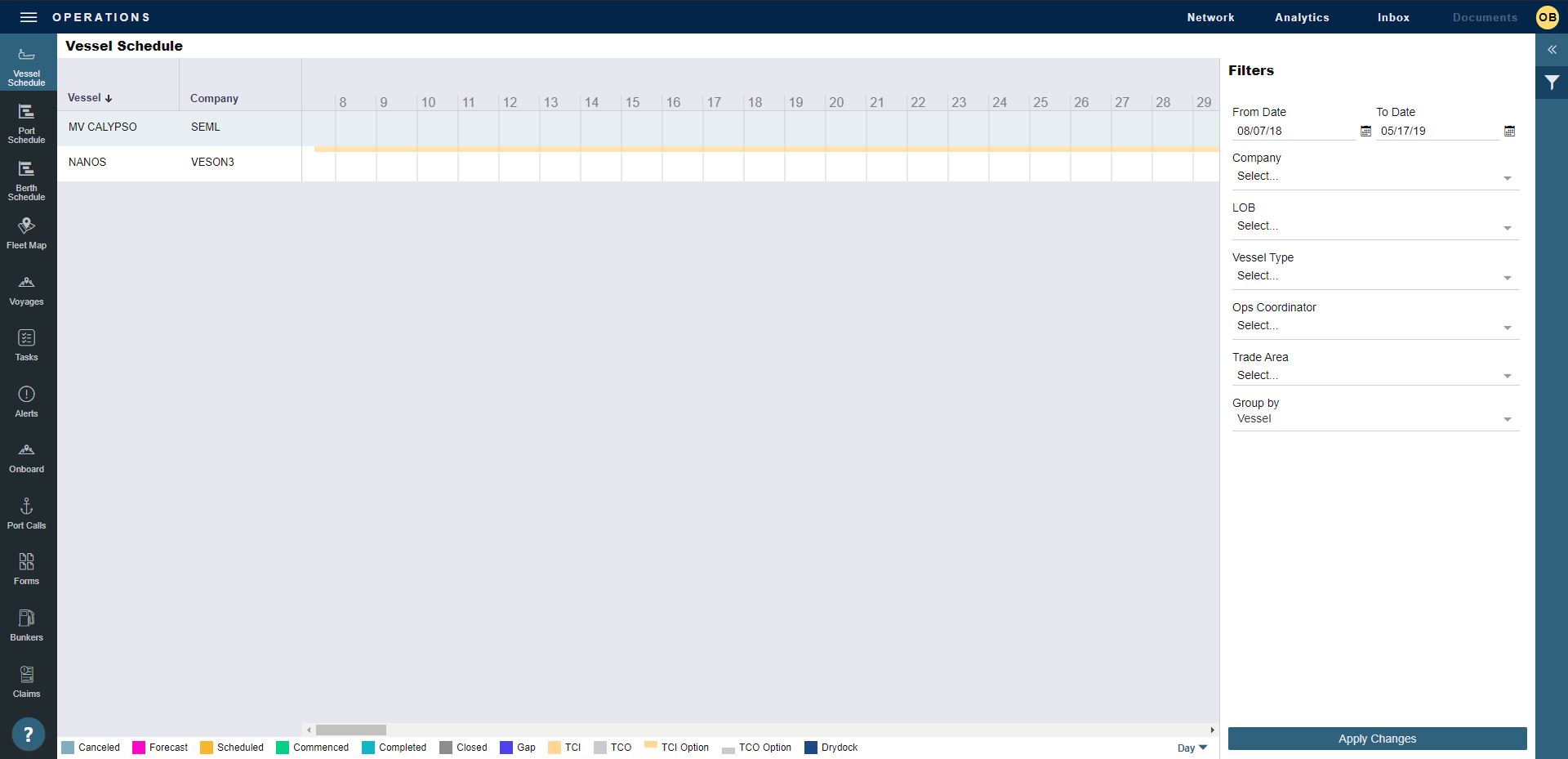

The Vessel Schedule is a graphical overview of your fleet's historical, current, and future voyages. You can select a Reference Date at the top left and other data filters at the top right. For each vessel in the column on the left side, the Gantt chart on the right side shows the schedule information, color coded by status, and either grouped by Company, with one line per vessel/company combination, or grouped by Vessel, with all voyage and TC contract bars on the same line. You can set the timescale, bar height, and zoom level at the bottom.

In the Operations module center

, under Quick Links, click Vessel Schedule.

On the Vessel Schedule, you can access the forms for a particular voyage, so you can manage the voyage from it.

  • To see information about a voyage, rest your mouse pointer over its bar.
  • To open the Voyage Manager, double-click the bar for the voyage.
  • To open the Time Charter Manager for a Time Charter, double-click the shading.
  • To open a context menu with items to create or open, right-click a bar.

To print the Vessel Schedule using the current Reference Date, filters, and zoom settings, click

.

For more information on schedules, see Schedules or the Schedules tutorial; for information on customizing the text that appears on the bars, see Styling Gantt Bar Templates.


Related Configuration Flags
Name/FlagDescription
Vessel Schedule Small Bar Template
vesselScheduleSmallBarTemplate

Set the data to display on Vessel Schedule Gantt bars and their tooltips.

Enable Forecast Voyage
CFGEnableForecastVoyage

Enables changing the Voyage Status to Forecast. Forecast voyages appear in pink on the Vessel Schedule and in Cargo Matching.

Default Forecast Voyage Status
CFGDefaultForecastVoyStatus

When this and Enable Forecast Voyage configuration flags are enabled, initial Voyage Status is Forecast by default instead of Scheduled.
