IMOS - Open Positions and Cargo Book - Scheduling

Home > Chartering > Open Positions and Cargo Book - Scheduling


At the top of Scheduling, the Open Positions and Cargo Book page displays owned vessel and cargo positions, which you can match to create and reschedule Estimates.

Alternatively, you can work from the separate Open Positions and Cargo Book lists.



  • As with any other list, you can search, select, adjust, pin, filter, group, and sort columns, reset to the default view, save user views, and export.

  • To open a vessel, Cargo, or VC In in a new browser tab, click the row.

  • To view a Scheduled or Estimate Cargo in the schedule, right-click a row and then click Quick scroll to cargo id: Cargo ID.

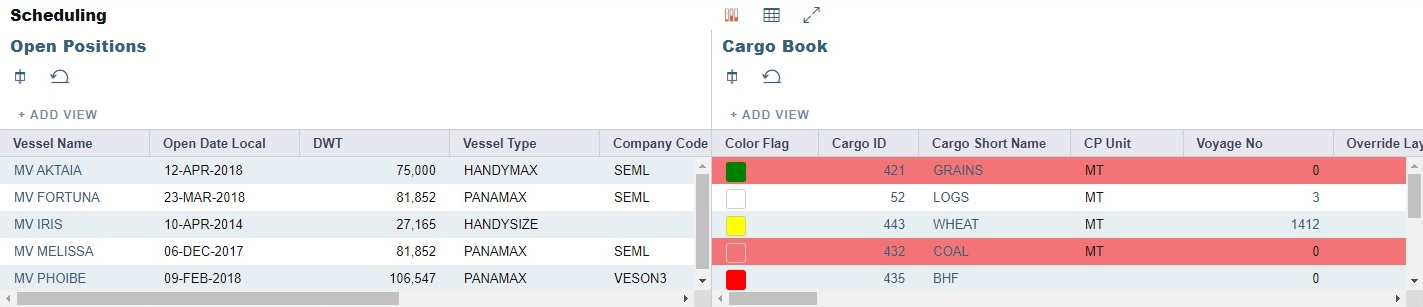

  • In the Cargo Book, flag rows with color to highlight levels of opportunity. To toggle through the colors, select Ch-Scheduling-flag row-grey.jpg in the Color Flag column change the color in succession:

    • Ch-Scheduling-flag row-green.jpg  Green

    • Ch-Scheduling-flag row-yellow.jpg  Yellow

    • Ch-Scheduling-flag row-red.jpg  Red

    • Ch-Scheduling-flag row-grey.jpg  Gray again

  • In the Cargo Book, depending on the Cargo Status, you can right-click a row to:

    • CargoID: Open the Cargo or VC In.

    • Estimate ID: Open the Estimate.

    • Voyage No: Open the voyage.

    • Override Laycans: Edit the laycan dates for a suggested estimate without changing the cargo’s contract.

    • Add Cargo Remarks.

    • Add Estimate Remarks.

    • Add Voyage Remarks.

  • To view additional information about a record, defined by the current program’s Template field, hover over a row.

Vessel and Cargo Positions

Vessels and Cargoes appear based on filters in the Programs panel as well as filters applied to the current Open Positions and Cargo Book list views:

Programs in the Scheduling, Open Positions, and Cargo Book workspaces require a date range of less than 4 months and at least one vessel in the Vessel Names filter. If these conditions are not met, the workspace does not load.

  • A vessel has either:

    • A voyage whose timespan (Voyage Commencing through Voyage Completing dates) overlaps the From Date/To Date filters and meets all the other filters.

    • An Estimate meeting those same criteria that was created in Scheduling.

  • A Cargo or VC In has a Laycan From to Laycan To date range that overlaps the From Date/To Date filters and meets the other filters.

  • FOB Cargoes do not appear in Scheduling.

Open Positions and Cargo Book Details Lists

You can open enhanced versions of the Cargo Book and Open Positions lists by selecting the details icon below each title.

  • To view row details and additional information on underlying vessel records or cargo, right-click a row, then drill down into the row details or directly open the voyage, vessel details, or Time Chater contract.

  • You can make changes to the Cargo Book and Open Positions lists in Design Mode.



Workflows

You can do any of the following from the Open Positions and Cargo Book lists:


Related Configuration Flags

Name/Flag

Description

Open Detail Lists from Scheduling
CFGOpenDetailListsFromScheduling

When enabled, clicking into the Open Positions or Cargo Book Lists from the Scheduling tool on the web will open the Details version of each list, providing the option to include more data in the lists from different sources.
