In Estimate details, you can add more cargoes and/or ports, as well as additional information, such as Miscellaneous Vessel Expenses per day, a Default Weather Factor, and price and consumption information in the Fuel Table. You can also select an Operation Type; some fields change based on the type.
Details view shows the full itinerary with miles and canals added, the commencing and terminating dates, and the financial results. From this view, you can update details for the vessel, fuel consumption and costs, cargoes, and voyage itinerary data, and fine-tune them. Each time you make a change, the TCE (Time Charter Equivalent) and expenses are updated on the P&L.
Click its ESTIMATE ID.
On its menu ..., click Details.
The Worksheets card panel on the left is collapsed by default. Click >> to expand it or click << to collapse it again.
As with any other details view, you can navigate to a different record by clicking its card or return to the list by clicking its Name.
To share an Estimate, copy its URL and then share it with any signed-in users in your organization.

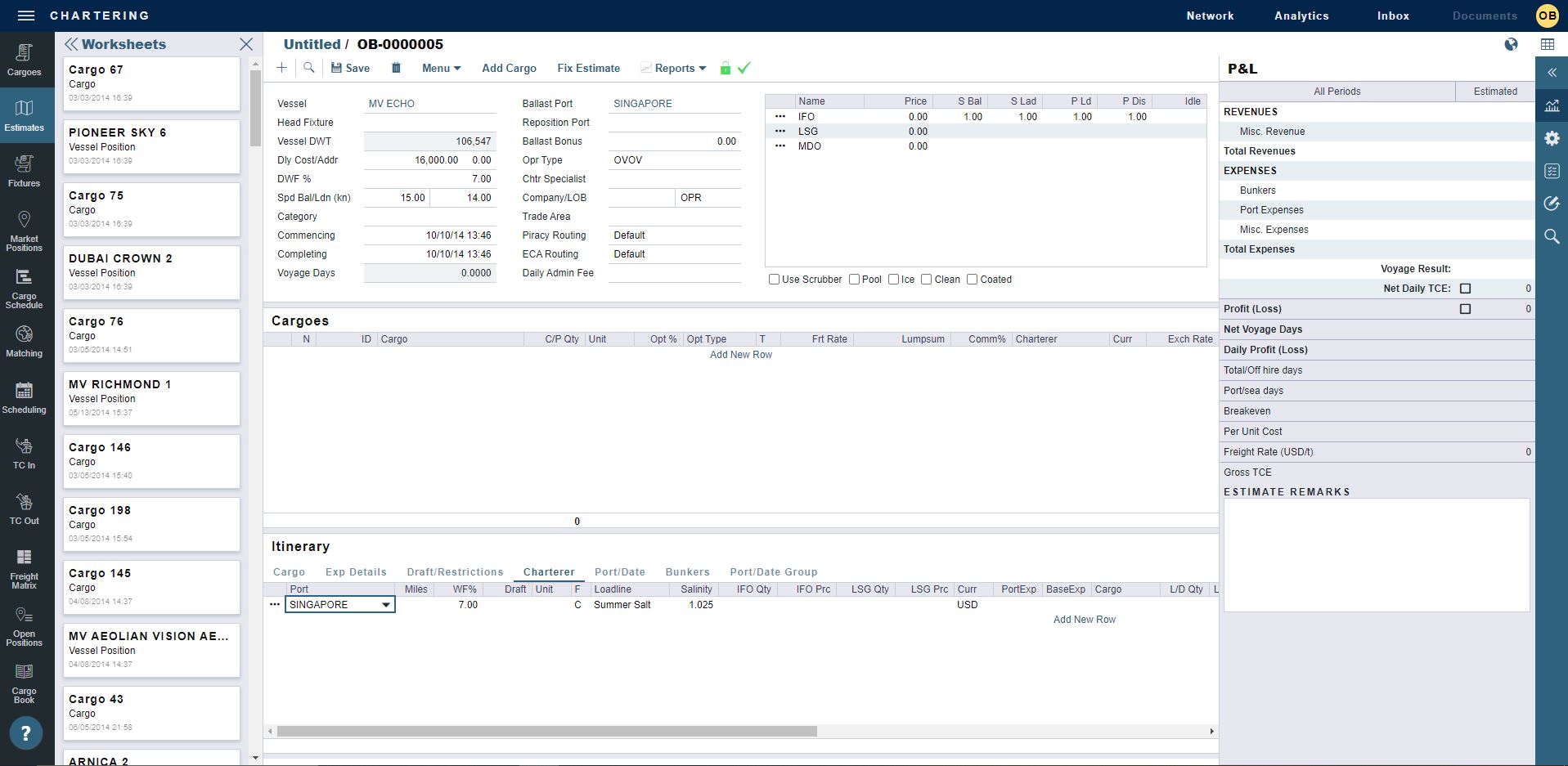

Estimate details are in the center:
Estimate information appears in general information, Cargoes, and Itinerary sections.
To view the Estimate on the map, where you can adjust the itinerary, click:
To return to Estimate details, click:
You can access additional tools, forms, and information on the toolbar and workspace panels.
When an Alert is entered for a Charterer, a Vessel, or a Port, the field is highlighted in light red.
Breakeven: Shows the freight rate required to break even on a voyage. Note that you must ensure the min/max qty on the cargo is set for this to calculate correctly
Use tools on the toolbar to create, find, save, or delete records.
Menu: In addition to the ... menu commands in column view, you can do the following:

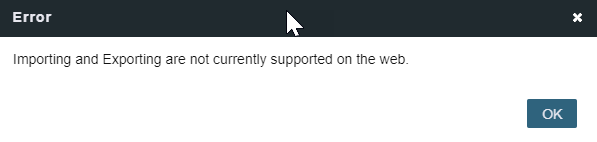

Import/Export an Estimate (not supported)
Reorder the Itinerary after changing the Sequence on the Port/Date tab, or alter it to create the Shortest Itinerary.
Apply Min CO2 Speed: Select to apply speeds that result in the minimum CO2 emissions.
Report: Access Voyage Estimate reports.
Locking Status: Depending on the status of the Estimate and your Module Rights, whether you can save it. Click the symbol to see a message describing any issues.
: The Estimate has not been fixed, and you have rights to save it.
: The Estimate has been fixed, but you have rights to save it.
: The Estimate was created by someone else, and you do not have rights to save it. (These rights include saving Estimates, Fixed Estimates, Benchmark Estimates, and Estimates created by others, with configuration flag Enable Voyage Estimate User Security enabled.)
Validation symbol: If information is not complete and correct, click the symbol to see a message describing any issues.
- : All information is complete.
- : Some information is missing.
- : The form contains one or more errors.
To access additional information in the right panel, click any of the following:
This section contains general information about the vessel and voyage.
These fields inherit default values from the Vessel form:
Dly Hire: The value entered in this field will contribute to Vessel Expenses, shown in the P&L Summary. It will be multiplied by the number of Voyage Days. If no Daily cost is entered, the system will divide voyage expenses by the number of Voyage Days.
Spd Bal/Ldn (kn): You can set these speeds to any value, unless the Restrict Speeds check box is selected for the Vessel Type, which restricts vessel speeds used to those in the Speed Consumption Table on the Vessel form.
Owned vessel: default is OVOV
Voyage Charter or Time Charter vessel: default is TCOV
Ballast, laden, load, discharge, and idle fuel consumption
These fields inherit default values from the vessel’s most recent voyage, if one exists:
Commencing and Completing dates
Ballast Port: Corresponds with the Commencing (Port Function type C) port in the itinerary
Reposition Port: Corresponds with the Terminating (port function type T) port in the itinerary
TC In Code: If the selected vessel is a Tow, this field will be locked from editing.
Addr: The value entered here will contribute to the Less Addr Comm field, shown in the P&L Summary. It will be multiplied by the Vessel Expenses.
DWF %: Veslink multiplies extra sea days on all voyage legs in the itinerary by this Default Weather Factor, which increases voyage length and expenses related to the length of the voyage. This can be set for individual voyages in the DWF % field under General information.
Piracy/ECA Routing: Select an option.
Default: Uses the vessel's default routing preferences specified on the Routes tab in the Vessel form.
Disabled: Uses the most direct route.
Enabled: Reroutes around all piracy zones.
Load Line Routing: Select an option.
Default: Uses the vessel's default routing preferences specified on the Routes tab in the Vessel form.
Disabled: Uses the most direct route.
Enabled: Reroutes around all load line zones.
On the fuel grid:
To open the Bunker Planning form, right-click a line item and then click Details.

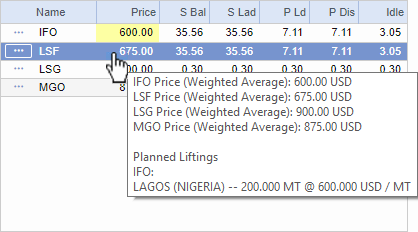

If you add planned liftings to the Bunker Planning form with Calculation Method FIFO, Price fields for associated fuel types highlight in yellow. To view the Weighted Average price of all fuel types and details about all Planned Liftings for the voyage, hover over a Price field.
Note: The consumption rates displayed on the fuel grid are automatically pulled from the Vessel form and can be manually overridden.
You can add cargoes in one of these ways:
Enter line items in the Cargoes grid or in the Itinerary grid Cargo tab: Click Add New Row and then click a field to edit its value.
Right-click a line item and then click one of the following:
Import Cargo: Enter Cargo Search Criteria, click Search, and then select Cargoes to add to the grid.
Create Cargo: Create a Cargo from values in the Estimate.
Duplicate Cargo (Inc. Itin): Duplicate a Cargo and include its itinerary.
Freight revenue is calculated in one of these ways, depending on the setting of Bill By in CP Terms/Details:
If Bill By is set to CP Qty, the freight will always be calculated basis the BL Qty.
If Bill By is set to Bill Qty, there are two potential calculations:
If an itinerary is not defined for the cargo, or if L/D Qty is blank in the itinerary for the cargo, freight will always be calculated basis the CP Qty.
If an itinerary is defined for the cargo, and L/D Qty is populated in the itinerary for the cargo, freight will always be calculated basis the BL Qty (L/D Qty).
Complete the remaining fields.
For Opt % and Opt Type, see Cargo Tolerance Option Types.
For T (Freight Type) = W (World Scale), see World Scale Rates.
For Operation Type RELT and SPOT, the first column T = contract type:
S = Sale (Cargo)
P = Purchase (VC In)
You can add ports and information about them. The Itinerary grid has tabs to show different views.
On all tabs, if the bunkers ROB falls under the safety margin (specified per fuel type for the Vessel), the text in the port line turns red, and the Voyage Validation icon turns red , so you can plan to get more bunkers. To work with bunkers, on the Estimate Menu, click Bunker Planning.
From port lines on most tabs, you can open the Itinerary Details form to enter additional details about the itinerary; right-click and then click Itinerary Details. In an Estimate column, it appears when you select a port.
To adjust ports in the Itinerary, right-click a line item and then click any of the following:
Select the Port and either Move Before or Move After.
If the port has associated Pilot Stations (configuration flag CFGEnablePortPilotStations must be enabled):
Insert Pilot Before
Insert Pilot After
Switch to Pilot
The Cargo tab includes information about the cargo for each port.
Exp Details Tab
Configuration flag Enable Cargo Expense Details adds an Exp Details tab to the Itinerary grid.
For companies that typically manage voyages on a discharge-to-discharge basis, but for some contracts are able to charge a netback on the shipping cost, this tab shows cost allocation by leg. Because the netback is on a load-to-load basis, the leg cost allocation is used to accurately calculate the amounts to charge back to the trader.
The port calls, as on the Cargo tab, with the Max Lift for each berth, based on the vessel, its Deadweight Table, and the API/Specific Gravity of the cargo, as well as the weight of bunkers and everything on the vessel.
If you have the list of Low Sulfur Community ports loaded into the Veslink database, the Estimate sets low sulfur port days (LS PDays) to be equal to port days (PDays) while in one of these ports (without considering Laytime Terms).
Low sulfur port days (LS PDays) and low sulfur sea days (LS SDays) will be calculated for ports and routes that fall within an ECA zone.
When configuration flag Enable Voyage Estimate Charterer Itinerary is enabled, a Charterer tab appears as the default tab on the Itinerary grid.
This tab consolidates high-value information such as vessel particulars, cargo and routing details, and bunker breakdown information.

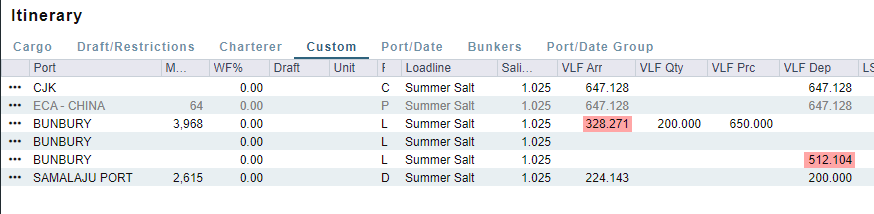

When the configuration flag Enable Voyage Estimate Custom Itinerary Grid is enabled, a Custom tab appears as the default tab on the Itinerary grid.
On this tab, you can view extra sea days (XSD), fuel type arrival ROB, and fuel type departure ROB fields, along with the same columns available in the Charterer tab.
When the configuration flag CFGEnableEditableLaytimeFactor is enabled, Webhook support is added to update laytime termsFactor via the estimate mutation.

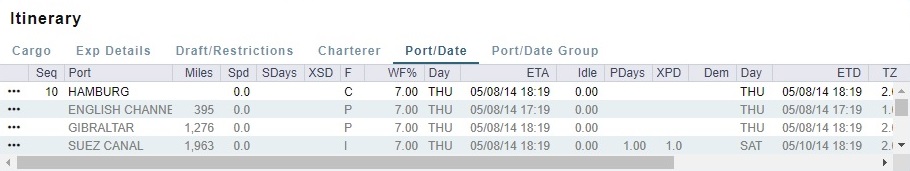

The Port/Date tab includes the parameters for each port call that has a function, with one line per cargo, like a cargo itinerary.
CO2 (MT): Calculates CO2 emitted. If a fuel's CO2 Factor is ≤ 1.0000 or empty, the CO2 (MT) column will not calculate and will appear light red.
CO2 emissions are calculated by multiplying bunkers consumed by their associated CO2 Factors for the designated voyage leg. If multiple grades of bunkers are consumed, your CO2 emissions will show the joint value of all CO2 emissions for the associated voyage leg.
For LNG Carriers, this tab includes an additional Fuel Cons Mode column. The Fuel Consumption Mode can be specified separately for each voyage leg. These defaults can be overridden on any leg:

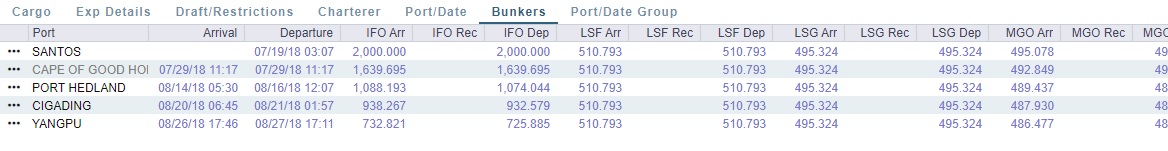

The Bunkers tab enables you to enter manual values to override the Estimate’s calculated Arrival and Departure ROB quantities.
Manually entered values appear blue. To revert to the Estimate’s calculation, clear the field.
Port/Date Group Tab
The Port/Date Group tab is a collapsed view of the Port/ Date view tab, with one line per port, like a vessel itinerary.
CO2 (MT): Calculates CO2 emitted. If a fuel's CO2 Factor is ≤ 1.0000 or empty, the CO2 (MT) column will not calculate and will appear light red.
The L/D Qty entered on a Load port will default the same quantity to that cargo's discharge port L/D Qty if the cargo is linked to the ports.
To lock a Transit port (Port Function P or I) to prevent it from being changed or removed, right-click the line item and then click Lock Transit Port. A locked Transit port has a light blue background in the Itinerary.
To move a port up or down in the itinerary, right-click the line item and then click Move Up or Move Down.
Display Load Dem rate in Cargo Grid
When enabled, the Load Dem rate field will be displayed in the Cargo Grid in the Voyage Estimator. This field will display the value of the Load Dem rate in the CP Terms Details form on the estimate. Updating this field in the Cargo Grid will update the value in the CP Terms Details and will trigger the loading despatch and discharging dem/des rates to update based on the values of CFGDefaultDespatchPercent and CFGDefaultDischargeDemDesPercent.
Add editable laytime factor
When enabled, adds webhook support for updating laytime termsFactor via update estimate mutation. A new field named Factor value is added to the Estimate custom itinerary. This Terms factor value can be updated as a value between 1 and 2 and is available as a field to configure and update via webhooks. Setting the Terms factor does not change the Terms themselves.
Enable Custom tab in Itinerary Grid
On the Custom tab of the Voyage Estimate itinerary grid in the Chartering module, you can now view extra sea days (XSD), fuel type arrival ROB, and fuel type departure ROB fields, along with the same columns available in the Charterer tab.
Add the sea mode/port mode as an estimate header-level field
To simplify port and sea fuel consumption estimates, you can now use the Sea Cons mode or Port Cons mode in Voyage estimates. You can choose to override all existing port calls with the modes you select. You will no longer need to select the mode again if you make changes to an estimate or add a port.
Voyage Estimate Show Cranes in Itinerary Grid
When enabled, the Cargo tab in an Estimate/Voyage Fixture/Voyage Manager will have a new column C, to indicate the use of Cranes in the specific port. This column will only be visible for bulk vessels, and its value can be editable from the Cargo tab in the Itinerary, the CP Terms Details form, or the Itinerary Details form of that port.
Distances Avoid Rivers
When disabled, calculates distances using river routes. This is equivalent to clearing the Avoid rivers if possible check box in Veslink Distances settings.
Auto Calc Port Expenses
On Estimates, automatically enters port expenses for ports with previously saved expenses. The estimated amount excludes rebillable and recoverable items from historical port expense invoices.
Default Auto Lift Quantity
On Estimates, auto-inserts the Max Lift Qty basis DWT restrictions.
Manual Max Lift Cp Quantity
When enabled, when using Auto Calculate by Max Lift in an Estimate, the CP Qty for a cargo will never be automatically set by the maximum lift calculation; only the L/D quantities will change. Users can manually change the CP Qty, if desired.
Voyage Estimate Use Min Cp Quantity for Charterer Opt
Y = If using Auto Calculate by Max Lift Qty in an Estimate, if the option type for a cargo is a charterer's option, its minimum quantity will be used as a restriction for lift quantity.
N = The CP Qty for the cargo will instead be used for the lift restriction.
Disable Max Lift Warnings
Enables notification when your quantity loaded exceeds the vessel's maximum lift quantity.
Default Rate Unit
Specifies default rate unit for cargo load/discharge rates (Estimate/Voyage Fixture Note).
Default Suez XP Days
Sets a default amount of XP, or Extra Port days for the Suez Canal transit.
Enable Cargo Expense Details
On the Estimate Details view, adds an Exp Details tab to the Itinerary grid.
Enable Cargo Handling Trade No
Note: CFGEnableMultiGrade must also be enabled.
Y = If multigrade cargoes are enabled, adds a Trade No. column to the Estimate Itinerary Cargo tab, Voyage Fixture, Voyage Manager, Cargo Itinerary/Options tab, and (when config flag CFGEnableActInvDetProrationByItin is enabled) Cargo Itinerary Allocation form. Additionally, if cargo transfers are enabled, the column is added to the Transfers tab. This is a free-text field, where users can enter identifiers for a trade associated with the given cargo lifting.
R = All the functionality of the Y setting is enabled, except that the Trade No. column is read-only.
Cargo Handling Trade No Title
Provides an override for the column title of the Trade No. column, which is enabled with CFGEnableCargoHandlingTradeNo. Leaving the setting blank causes the column title to remain Trade No.
Enable Port Expense Search Autocomplete
On the Port Expense Search form, enables selectable search criteria instead of free-text searching.
Multi Currency Port Expenses
Enables support for multicurrency estimated port expenses.
Show Rate Unit in Main Itinerary
Displays the Rate Unit (RU) column in the main Itinerary grid in the Cargo tab of Estimates, for easy view/editing alongside the L/D Rate column values.
Update Canal Expense on Vessel Change
Changing the vessel on an estimate or fixture note will update any canal costs in the itinerary with the defaults as specified in the selected vessel's routing prefs. Any canals which occur between delivery and redelivery in a TCO Estimate will not be updated, and any canals which do not appear in the routing preferences of the selected vessel will likewise be unaltered.
Voyapi No Shex Factor on Turntime
SHEX factor will not be applied to turntime when estimating total days in a port.
Default Port Expense to Provisional
Enable Default Ending Rob Constants
An additional constant representing a default ending bunker quantity (Ending Bunker ROB Margin on the Vessel form) will be added into the Estimate maximum lift calculation in cases where the initial bunker quantities are not specified in the Estimate.
No Default Port Terms
The Estimate/Voyage Fixture will not default the laytime terms at ports to SHINC - for L/D ports, having no terms will cause a validation error which will prevent the user from fixing the estimate with such errors and/or prevent the user from saving a fixture with such errors.
Voyage Estimate Show Cargo Volume
Enables the Cargo Volume field on the Port/Date Group tab. This field displays the change in cargo ROB for all cargo handling lines at both load and discharge ports.
Show Counterparty in Itinerary
Enables the Charterer field on the Cargo and Port/Date tabs. This field displays the charterer for the Cargo associated with that load or discharge line.
Enable LNG Port Fuel Consumption Mode
For voyages and estimates with Vessel Type L, enables you to select how LNG will be consumed for the purposes of estimating in-port bunker consumption for LNG carriers:
Group by Func on Cargo Import
When importing a Cargo contract, new ports for cargo loads will be added to the itinerary immediately after the last existing load port. Likewise, new ports for discharging will be added after the last existing discharge port. This behavior will not apply if M ports are present in the itinerary.
Enable in Progress Estimating
When enabled, Estimates can be created from an in-progress, ballast voyage. When fixing and scheduling, the in-progress Estimate will be merged back into the original voyage.
Auto Select in Progress Estimate
If enabled, when selecting a vessel on an Estimate, if that vessel's latest-dated scheduled or commenced voyage has no cargoes (and the Drydock check box on the voyage is not selected), the In Progress check box on the Estimate is automatically selected, and the voyage itinerary is copied to the Estimate. Also, the prohibition against editing in the Estimate any of the itinerary lines copied from the Voyage is relaxed to allow editing of itinerary lines with no operational data (arrival, etc.). Requires CFGEnableInProgressEstimating to be enabled in order to take effect.
Enable Voyage Estimate Charterer Itinerary
When enabled, the "Charterer" tab is visible and the default tab on Estimate details. This tab shows itinerary information and bunker lifting quantities and prices.
Trade Unit ID in Cargo Grid
The CP Terms grid in the Estimate, Voyage Fixture, and Voyage Manager will have an ID column that displays the Cargo ID for the cargo linked to the CP Terms.
Trade Unit ID in Itinerary
The Estimate/Voyage Fixture will show the trade unit ID of the cargo associated with the given itinerary line.
Default Cargo Unit
On Estimates, sets the default cargo unit for the Quantity/Units field.
Default Freight Type
To globally configure the default Freight Type for Cargoes newly added to the Estimate, Voyage Fixture, and Voyage Manager. Enter the letter code for the default freight type: F = Freight Rate, L = Lumpsum, W= World Scale, D = Daily Rate, A = ATRS. Note that this configuration only affects Cargoes that are created via the Estimate, Voyage Fixture, and Voyage Manager. Cargoes that already exist and are imported into these forms are not affected, and records created directly from the Cargo form always use the default set in the flag.
Enable Alt Lift Unit
Enables Unit of Measure Conversion for MT, BBL, and M3.
If there are a value and a unit of measure for L/D Qty, a unit of measure for Alt Unit, and nonzero values for API/SG, then the Alt Qty value is automatically calculated. An L/D Qty can also be calculated from a manually entered Alt Qty: To trigger recalculation, enter the Alt Qty and then clear the L/D Qty value. This procedure can also be used to calculate the quantities based on a manually entered API/SG.
Enable Multi Grade
For vessels such as product tankers with the same kind of Cargo in several grades, enables Multigrade Cargoes: Changes the Cargo field to Cargo Group and adds a Cargo Grade column (for the Cargo Name within the Cargo Group) to the Itinerary/Options tab.
The Freight Invoice automatically adapts its format to display the Cargo Group, followed by the individual grades.
Note: The setting of this config flag determines which variable is available, and whether the No. of Grades variable is available, on the Pricing Rule form:
When the Cargo Grade variable is used in a Rule, its evaluation is done based on the order of Grades in the itinerary.
Enables the cargo units field to be editable on the Estimate and CP Terms Details forms.
Show Cargo Per Unit Cost
Adds a Per Unit Cost field to the Estimate P&L. This value is also seen on the Voyage Profit & Loss Report (accessible from the Voyage Manager) where Per Unit Cost = total cost of expenses by quantity of cargo loaded.
Show Commission in Cargo Grid
Shows the Comm% field in the Estimate Cargo grid, which shows the total commission for the Cargo. If there is only one broker, the value can be updated manually in this field. If there are multiple brokers, their commission should be updated in CP Terms Details.
Verify Matching Company
Displays a validation error if any of a voyage's or Estimate's linked contracts or Bunker Requirements has a different Company set than the voyage company.
Default Company on TCI Select
When selecting a TC In Fixture to be used for a Voyage/Estimate, if no Company has been selected, the Company on the selected TC In Fixture will be used.
Default Company from Vessel
When selecting a vessel on a contract, if no Company has been assigned on the contract, it will default to the Company specified on the vessel.
Enable Operations LOB
If enabled, displays an LOB (Line of Business) field on the Address (Type W), Estimate, Voyage Fixture, Voyage, and contract forms.
Default Chartering Specialist
When creating a new Estimate or Voyage Fixture, the current user will be assigned as the Chartering Specialist.
Default Company on Cargo Import
When importing a cargo, specifies whether or not the company specified on the imported cargo should be used to default the company on the Estimate, Voyage Fixture, and Voyage Manager if a company has not yet been specified.
Default Lob on Cargo Import
When importing a cargo, specifies whether or not the LOB specified on the imported cargo should be used to default the LOB on an Estimate, Voyage Fixture, and Voyage if an LOB has not yet been specified.
Default Lob on TCI Select
When enabled, when a Time Charter In is selected, if an LOB has not yet been set in the Estimate/voyage, the system defaults to the LOB specified on the Time Charter In Contract.
Enable Chart Manual Status Flags
Adds additional status options to the Voyage Fixture and Estimate, and the manual management of these statuses. (A manually managed Status field is available on the Voyage Fixture, with a default status of On Subs. A voyage can be scheduled from a Voyage Fixture only if its status is Fixed.)
Enable Fixtimator Trade Area
On Estimates, sets the appearance of the Trade Area input box in the expanded Details view.
Use Estimate Last Fuel Cost
Enables the option to default Estimate fuel costs to those of the last saved Estimate.
Use Vessel Last Port
On Estimates, defaults ballast port to the vessel open port.
Voyage Estimate Category Custom Type
Specifies a custom label for the Category selection list field on an Estimate and its reporting dataset. The values in the list can be configured on the Voyage Estimate Categories form, available from the Setup section of the Chartering menu.
Voyage Estimate Retain Bunker Prices
Changing vessels on an Estimate will map the bunker prices for the first vessel onto the new vessel where appropriate; fuels unavailable on the new vessel will not be available and hence not have prices, and fuels available on the new vessel that are absent from the first vessel will pull their prices from the last voyage prices (unless explicitly disabled with use of config flag CFGUseVesselLastFuelCost), or the last Estimate (if CFGUseVesselLastFuelCost is disabled and CFGUseEstimateLastFuelCost is enabled). On the Estimate Vessel Matrix form, the Preserve Bunker Prices check box is selected by default, but you can change it.
Default Bunker Unit
On Estimates, sets the default bunker unit.
Use Vessel Last Fuel Quantity
The initial bunker quantities in an estimate will be pulled from the last actual voyage when a vessel is selected.
Use Company Lob Trade Area Hierarchy
Sets up a hierarchy between Company, LOB, and Trade Area on several forms.
Use Previous Voyage Weather Factor
When enabled, the previous voyage DWF % (WF % in the Voyage Manager) value is copied to new consecutive voyages and Estimates, and the global default value set by CFGDefaultWeatherFactor is applied only when no previous position is specified for a voyage or Estimate.
Voyage ID by User Prefix
Automatically assigns a sequential Estimate ID number for each user prefix.
Enable Vessel Import from Estimate
Note: Additional licensing is required for Vessel Data Integration.
When enabled, if a user searches for a Vessel in an Estimate that does not already exist in the database, instead of asking the user to create a new Vessel, they will have the option to import from configured external vessel data sources.
Default TCI on Estimate Vessel Select
When enabled, a TC In or Head Fixture will be automatically assigned when selecting a vessel in the Estimate. When disabled, users will have to manually select a TC In/Head Fixture in the Estimate.
Enable Voyage Estimate User Security
Users can only save changes to Estimates they create. If a user attempts to save an Estimate created by another user, the action will be blocked, and they will be advised to make a copy of the active Estimate.
Voyage Estimate Zero Profit on Bunker Error
Any fuel type that is used in the calculation with price zero will trigger a red warning. The profit and daily profit are set to zero to avoid misjudging the calculation.
Voyage Estimate Zero Profit on DWT Error
If the quantity of cargo on board exceeds the calculated max lift quantity for an itinerary line, an Estimate error will be raised indicating where the overloading has occurred, and the profit/daily profit for the Estimate will be set to zero. However, if the Estimate is fixed, it does not show zero P&L, and the Estimated P&L in the Voyage Manager is not affected.
Voyapi Error on Disch Greater Than Load
A nominated discharge quantity greater than the loaded quantity will raise a validation error in the Estimate, Voyage Fixture, and Voyage Manager. Additionally, in the Estimate, this will clear the results of the P&L calculation.
Voyapi Warn If Missing Estimate Port Expense
Displays a validation warning in the Estimate and Voyage Manager if a cargo handling port call exists without estimated port expenses.
Warn If Missing Cargo Bunke0rs
If a vessel is a tanker or gas carrier, displays a warning if the applicable cargo bunker consumption types are not enabled in its Estimate or voyage.
Voyapi Validate Cargo Laycan for Port
Adds validation warnings if, at the first port where a cargo is to be loaded, the vessel will arrive before the start or after the end of the cargo's laycan.
Use Voyage Estimate Voyage Deviation
Voyage Expense Allocation
Adds a Voyage Expense Allocation section to the Voyage Estimate Profit & Loss Report, and optionally to the Voyage Profit & Loss Report. Note that this requires CFGEnableStandards to also be set to Y.
Hides the Port Expense field on some forms, enables standards for expenses, and adds a Port Expenses Details form and a Port Expenses Details button on the Port Expenses Summary to open it. When detail-level port expenses are being used, the PortExp column in the Voyage Itinerary behaves the same as the PortExp column in the Estimate itinerary:
An ECA Factor field also appears on COA, Cargo/VC In, and CP Terms Details forms. When ECAFactor is used in an IMOS ECA Recovery Charge Results/Fee expression and an ECA Factor value is entered on a contract, an ECA Recovery Charge Extra Freight Term is generated on that contract.
Enable Benchmark Estimate
On the Estimate Properties panel, a Benchmark check box appears. To mark an Estimate as a Benchmark Estimate, select the check box. Benchmark Estimates must have exactly one cargo, and they cannot be fixed.
On COA and Cargo/VC In forms, an Exposure tab appears. If a cargo is linked to a Benchmark Estimate via the Exposure tab, the market rate will be used as the TCE in the Benchmark Estimate and back-calculate the $/ton rate in the Trading Profit and Loss.
Sync Cargo With Initial Estimate
Syncs the Cargo with the Initial Estimate, as long as there is only one Cargo and one Initial Estimate; if the same Initial Estimate is used for multiple Cargoes, one:many will not be synced when the Initial Estimate is updated.
If the Estimate has two Cargoes linked to it, the Open Contract button on the toolbar is named Contracts and has two options:
When a VC In is set to use a TCOV Benchmark Estimate, the VC In will not be updated when a change is made to the Initial Estimate.
When CFGLockInitialEstimate is also enabled, and there are multiple Cargoes that use the Benchmark Estimate as the Initial Estimate, this flag is ignored: The Estimate can be edited and saved.
Lock Initial Estimate
Locks the initial Benchmark Estimate after the Cargo contract is created. When the Cargo contract is Confirmed, it can be edited, but the corresponding Initial estimate is locked. For all other statuses, the Initial estimate can be edited, but Freight Type and Frt Rate fields on the Cargo cannot. They must be updated from the Initial estimate (applies when CFGSyncCargoWithInitialEstimate is ON).
Voyage ID Includes Date
If enabled, the ending year digits are automatically included in the voyage ID.
Voyage Estimate Bunker Sensitivity
Shows fields on Voyage Estimate form and Summary report indicating the necessary freight rate increase required to maintain a constant TCE for a $1 increase (where $ is customer bunker currency) in price for the specified bunker type.
Enable Port Pilot Stations
Enables functionality around port pilot stations both in Master Data and through the Estimate and voyage itineraries.
Enable Voyage Estimate Market Pricing
Note: Requires the Trading & Risk module or Market Data license and schema version 292.
When enabled, Market Data in the form of Trade Routes and Bunker Symbols can be added to an Estimate, which will pull in the latest prices into the corresponding fields. These values can be updated at any time by refreshing the market data in the estimate.
Enable Voyage Type Checkboxes
Adds Pool, Ice, Clean, and Coated check boxes to the Estimate and Voyage Fixture for reporting for bulk vessels. They are carried to the Voyage Manager, and their statuses flow between the forms.
CFG Enable Default Column Pinning
When enabled, certain grids in Estimates and Voyage Manager will have Port names pinned to always remain visible within a view.
